Detailed Introduction

Capable of printing six colors, with optional oil pans and oil cups.

Microcomputer-controlled for simple, accurate, and reliable operation.

Equipped with a four-digit counter for stable and high-precision printing.

The machine body is made of high-quality cast aluminum, lightweight, solid, and aesthetically pleasing.

The worktable can be independently adjusted in X and Y angles, ensuring accurate color registration and significantly improving efficiency.

The main pneumatic components are from Germany's FESTO, ensuring precise and durable printing.

The entire machine operates quickly, smoothly, and with low noise.

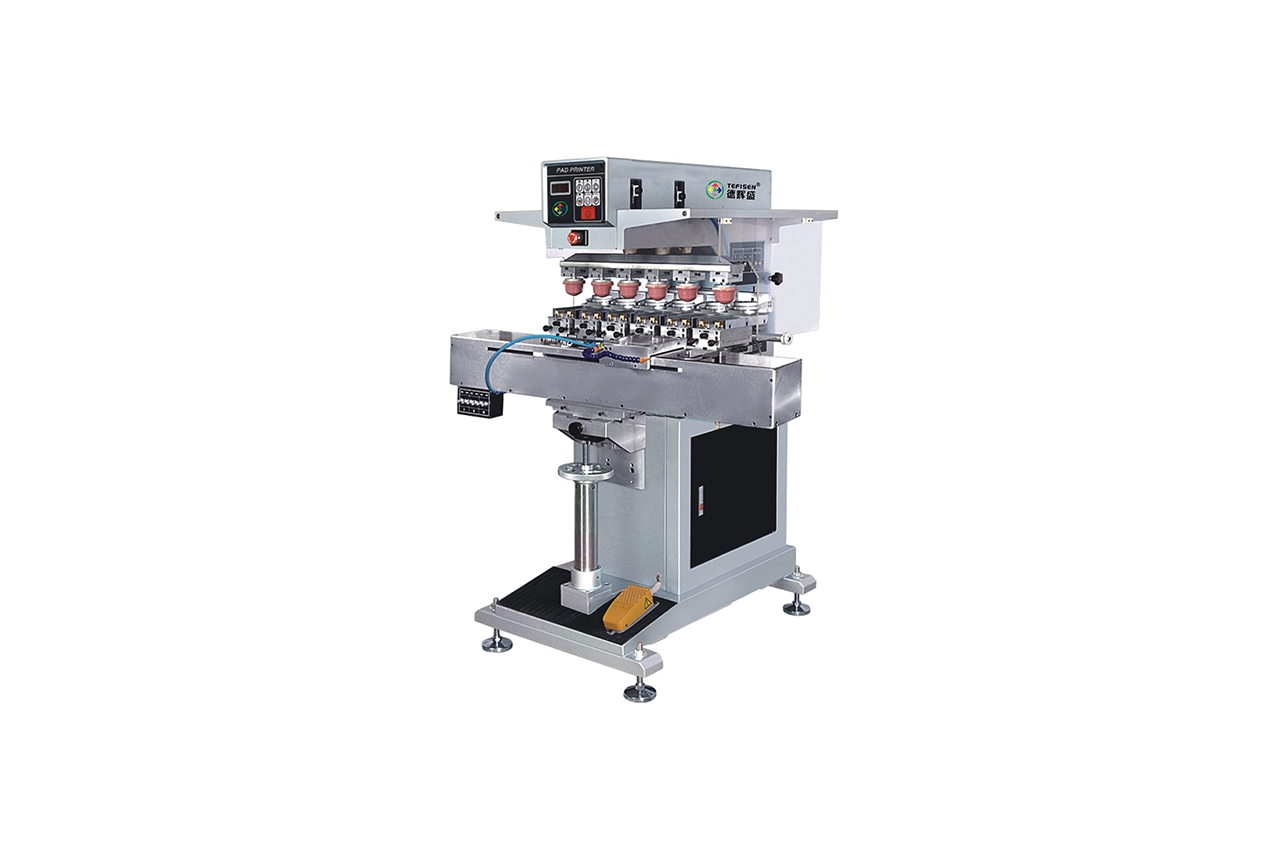

TFS-CP6-200S 6-color Pad Pinter With Shuttle Features:

Model No.: TFS-CP6-200S

Steal Plate Size（mm）： 75 X 200

Ink Cup（mm）： φ60

Printing Area（mm）： 50 X 80

Printing Speed（PCS/Hr）： 400

Workpiece Height（mm）： 180

Power / Air Pressure： 110/220V, 50/60Hz, 35W, 6Bar

About Tefisen:

Tefisen provides the complete solutions for pad printing and screen printing. We have everything you need to start pad printing and screen printing, including printing equipment, ink cups, ink plates, steel plates (clichés), silk screen plates, and printing inks. In addition to our equipment, we also provide specific services such as equipment maintenance, Technician training, color matching, adhesion testing, and customized accessories.

Do you need help with TFS-CP6-200S or other pad printer or screen printing machines? Please send an e-mail to sales@tefisen.com.
